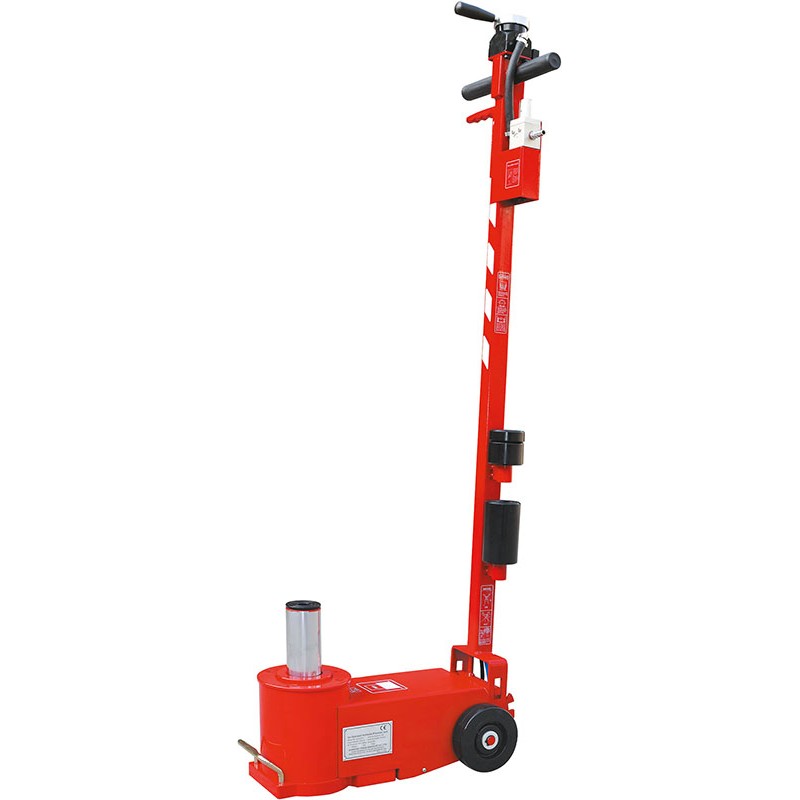

code: AJ-22 T1 F
- operating temperature: from -20° C to +60° C
- all devices are equipped with an internal safety valve, dead-man control (activated restraint) and chromed pistons
- minimum height from the ground: 205 mm
- maximum height (without extensions): 320 mm
- hydraulic stroke: 115 mm
- nr. stackable extensions included: 3
- stackable extension dimensions: 20/40/80 mm
- maximum height with extensions: 460 mm
- number of pistons: 1
- maximum capacity: 22 T
- width: 240 mm
- length: 517 mm
- weight: 37 kg
- operating pressure: 8 - 12 bar
- air consumption: 600 l/min
