*This product code is a BUNDLE, ie a set of products

Technical specifications:
- Power sensor on the left pedal and right pedal
- SX/DX balance
- Cadenza sensor: Integrated interior
- Giroscope: Integrated interior
- Power calculation system: IAV (Instandaous Angular Velocity -Based)
- IAV Cycling Dynamics: Yes
- Compatible oval crowns: Yes
- Total weight for pedal: 151.5g (battery included)
- Lithium battery, rechargeable
- Battery autonomy: at least 50 hours
- Radio communication: Bluetooth V4.0, Ant + Profile PWR (CT + PO)
- Accuracy measures power: ± 1%
- Thermal compensation: -10 ° C / +60 ° C
- Grade waterproof: IP67
- Q -Factor with: PD -R7000/R550/R540: +64mm, PD -R8000/6800: +65mm
- type of bike: racing
- Made in Italy
- Warranty: 2 years

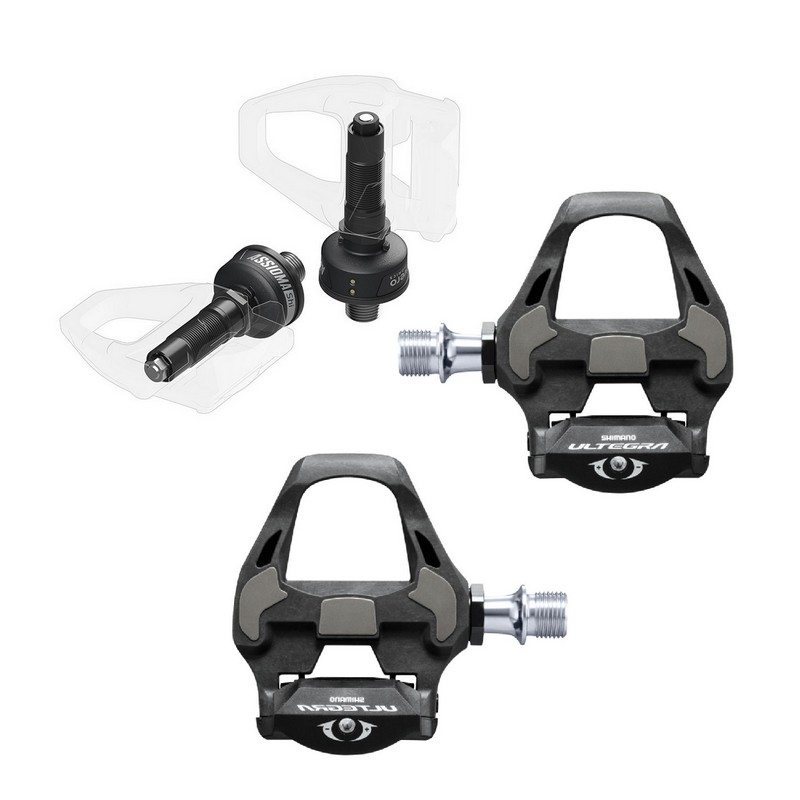

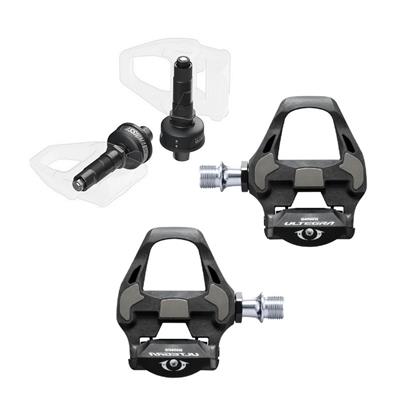

Content of the package:
- Six -power sensor with right power for adapter for adapter for adapter for adapter for adapter for adapter Shimano Pedal Bodies
- Right Power Sensor with SHIMANO PELLE BOARD ADAPTER
- Charger with EU, UK, AU
spine, - 2 micro -USB/USB/USB cables of 2 meters with 2 magnetic connectors
- Hexagonal key and 4 slices for assembly
- Axiom user manual
- Using Manual Axiom Using Manual Duo -Shi

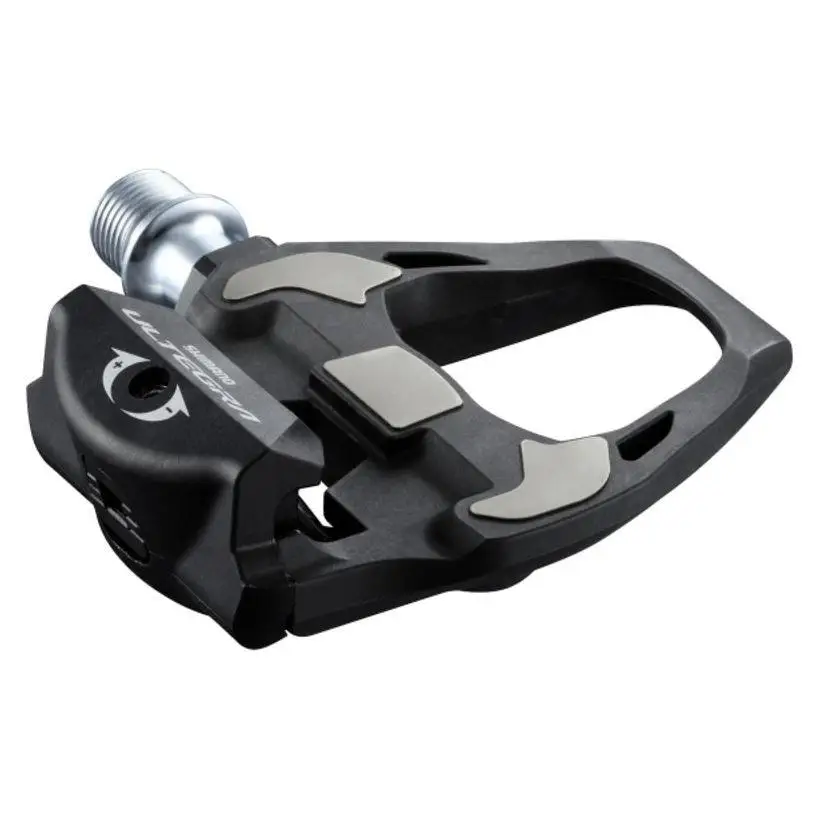

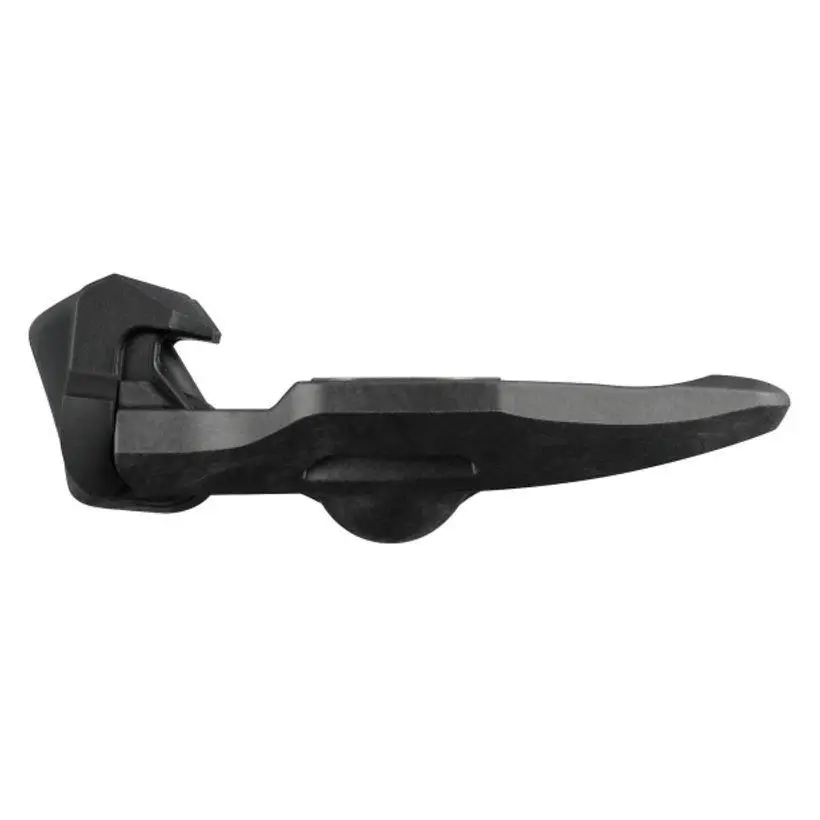

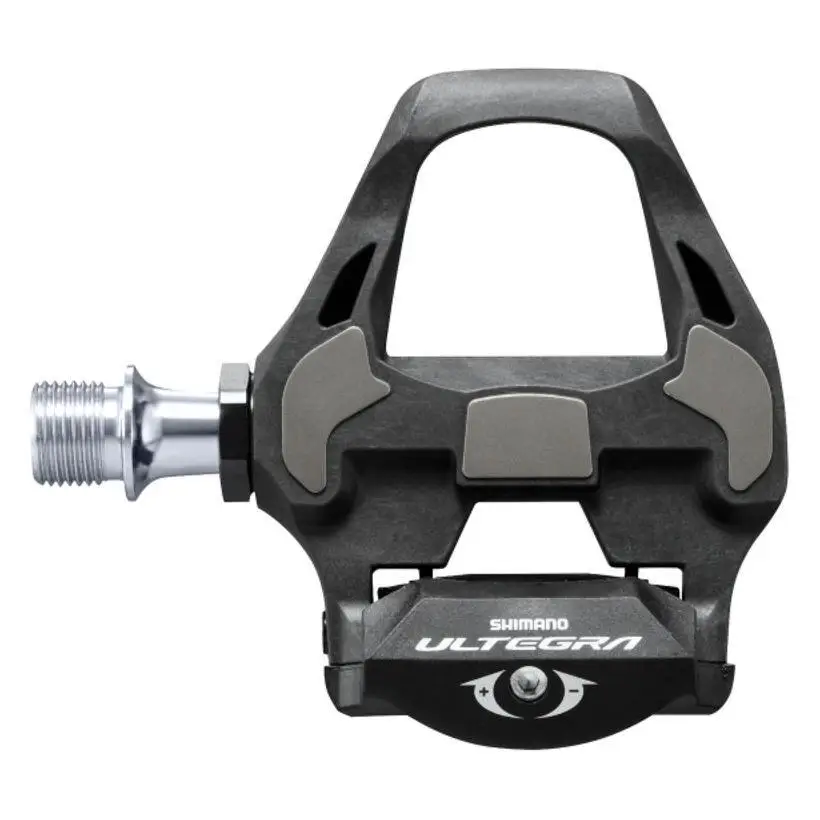

Pedal Pedal Pd -R8000 SPD:
- Pedal body: carbon - composite
- Extra -larga platform for optimal power transfer
- Tension system of hooking - Adjustable release
- Pierno: chromium nickel steel
- cartridge axis with sealed mechanism
- weight: 255 gr </

Panoramic

made for the compatibility with Shimano® Strada
Duo-Shi axioma was designed for loyal users to the SHIMANO® Strada standard, as it offers the possibility of continuing to run with their pedal bodies* Shimano® without having to give up reacing and precision of axiom. Pedal bodies* Compatible Shimano® is simple and quick. Watch the video guide to installation.

Compatible Shimano® pedal bodies
Duo-Shi axiom is compatible with the following Shimano® pedal bodies: PD-R8000, PD-R7000, PD-6800, PD-R550 and PD-R-540.

Q-Factor increased? It is +54mm, while that of Duo-Shi axiom size +64mm with the PD-R7000/R550/R550 Pedal Bodies and +65mm with the PD-R8000/6800. Despite an initial hesitation relating to the increase in the Q-Factor, we decided to proceed the same with the project, taking into consideration that the size of our body (weight, width of the pelvis, etc.) is a subjective factor that can help determine which is the most suitable Q-Factor for each of us. An actual positive response from our beta testers has definitively validated the product.

easy to install
The Favero Pedals Favero Axioma Duo are installed and move from one bike to another like the classic pedals: in a few minutes, without particular tools and without the assistance of the mechanic.

iav cycling dynamics
Advanced such as IAV Cycling Dynamics (IAV Power Phase and IAV Rider Position) which, together with the classic power data, allow you to analyze the pedaling technique in detail and how the cyclist's position influences the performance. They take into account our irregular rides (e.g. sprints, climbs) or the use of oval crowns at the time of calculating the power, thus guaranteeing an accuracy of ± 1% in any situation. This is because Axioma is capable of detecting the actual instantaneous corner of the pedaling.

Bluetooth and Ant+
The Duo Axiom racing bike potentiometer is equipped with Bluetooth and Ant+ technology for a safe transmission of data both to cyclocomputer and Android smartphones and iOS. supplied by duo axiom are based on the measurements taken separately on the right and left side; This allows you to accurately observe not only the total power, but also the left/right balance.

measurement stability
thanks also to the ATC (automatic temperatures compensation), our potentiometer ensures not only accuracy but also repeatability and consistency of measurements in real conditions of use on the road and at any temperature between -10 ° C and 60 ° C. Light
protected by a block of two -component resin, the sensor of our potentiometer is extremely impact resistant and completely waterproof.

rechargeable and eco
The axiom pedals use integrated rechargeable batteries: a single recharge guarantees at least 50 hours of use. Italy and tests the proper functioning individually through careful laboratory tests, satisfying abundantly the standards required by current regulations.
